Process Air Gas Silencers

Process Air Gas Silencers

Typically utilized for rotary blades or centrifugal blowers, Wakefield Acoustics offers a wide range of custom-designed process air or gas silencers. Each silencer is cost-effectively designed to meet the most demanding of customer noise specifications.

We offer several type of absorptive silencer construction dependent on application and structural requirements, from light gauge welded construction through to heavy plate welded construction.

INDUSTRIAL SILENCER
Dependent upon the level of acoustic performance required silencers can be designed with an absorptive outer layer, thus not presenting additional pressure onto the system. Where a high level of noise reduction is required, a central acoustic pod would normally be installed.

Given the high heat levels which can sometimes be generated in process air and gas lines, the silencers would normally be treated with a heat-resistant paint finish after fabrication.

Wakefield Acoustics is able to undertake pressure testing of silencers to ensure compliance with project requirements.

Download our brochure
Request info

FEATURES & BENEFITS

  • Central absorptive pod for improved attenuation
  • Aerodynamic cones and hemi-spherical end caps to reduce pressure loss
  • Fully welded and gas tight
  • Melinex moisture resistant membrane for damp process air
  • Operating temperatures in excess of 250°C
  • Support feet, weather cowls and mesh guards
  • VARIOUS FINISHES INCLUDING:
    • Polyester powder coated
    • Various wet paint systems

PP Series – Polypropylene Electroplating Filter Systems – 2500/3500/4500/5500/7500 PP Series

PP Series – Polypropylene Electroplating Filter Systems – 2500/3500/4500/5500/7500 PP Series

Mefiag

Our Mefiag mid-range Polypropylene Electroplating Filter Systems units feature horizontal disc technology and capacities from 2,500 to 7,500 gph.

Since 1953, Mefiag has established its position as a global leader in the concept, development, creation, and distribution of unrivaled filter solutions. Our innovative filtration and pump solutions are the best in the anodizing, plating, and metal finishing industries. Our products perform beautifully in the harshest conditions. Simply put, Mefiag filters just work harder.

Mefiag products are the most versatile available. Along with our filtration systems for electroplating, our pumps and filters are used in numerous other applications around the world. Companies have come to rely upon our products to filter and dispose of harmful particulates. As our knowledge has expanded, one thing remains the same: our solid commitment to creating dependable, efficient products for our clients. Choosing a Mefiag filtration system for your business ensures your peace of mind.

At Mefiag, we are proud of our history. From our very first day, we remain committed to providing exemplary products for outstanding clients. If you strive for the best as hard as we do, then you can trust that Mefiag will bring your company the excellence and reliability it deserves. For optimum filtration solutions, choose Mefiag products.

Download our brochure
Request info

FEATURES & BENEFITS

  • Designed for the filtration of nickel, copper, and zinc electrolytes
  • Operating temperature to 180°F (82°C)
  • For plating tanks from 400 to 1,000 gallons (1818 to 4546 L) depending on the type of process
  • Can be supplied with horizontal discs or cartridges depending on the application
  • Low Total Cost of Ownership
  • Horizontal disc technology for greater surface area and maximum efficiency
CECO Environmental

APPLICATIONS

  • Automotive
  • Construction
  • Sanitary
  • Plating
  • Anodizing
  • Metal Finishing
  • Labs
  • Small Plating Tanks

PP Series – Polypropylene Electroplating Filter Systems – 7000/9000 PP Series

PP Series – Polypropylene Electroplating Filter Systems – 7000/9000 PP Series

Mefiag

Our Mefiag dual chamber Polypropylene Electroplating Filter Systems feature horizontal disc technology and have capacities from 7,000 to 9,000 gph.

Founded in 1953, Mefiag has succeeded in becoming a global leader in the development, creation, and distribution of unsurpassed filter solutions. Our advanced filtration and pump solutions lead the field in the plating, anodizing, and metal finishing industries. Mefiag products stand up to the toughest conditions. Mefiag filters are designed to work harder.

Mefiag products are the most versatile on the market. Beyond our filtration systems for electroplating, our pump and filter products are used in diverse global industries to separate and eliminate harmful substances. As our capability has expanded, one thing has never changed: our commitment to providing reliable, efficient products. When you choose a Mefiag filtration system for your business, you are choosing peace of mind.

At Mefiag, we are proud of our heritage. From the very beginning, we have been committed to manufacturing the best products for the best people. If your goal is reliability and excellence, then you can trust Mefiag to bring your company the filtering solution that delivers. For the optimum in filtration, choose Mefiag.

Request info

FEATURES & BENEFITS

  • Designed for the filtration of nickel, copper, and zinc electrolytes
  • Operating temperature to 180°F (82°C)
  • Capacities range from 7,000 to 9,000 gph (442 to 568 L per minute)
  • For plating tanks from 400 to 1,000 gallons (1818 to 4546 L) depending on the type of process
  • Can be supplied with horizontal discs or cartridges depending on the application
  • Low Total Cost of Ownership
  • Horizontal disc technology for greater surface area and maximum efficiency
CECO Environmental

APPLICATIONS

  • Automotive
  • Construction
  • Sanitary
  • Plating
  • Anodizing
  • Metal Finishing
  • Labs
  • Small Plating Tanks

PP Series – Polypropylene Electroplating Filter Systems – 0310/0620/0640 PP Series

PP Series – Polypropylene Electroplating Filter Systems – 0310/0620/0640 PP Series

Mefiag

Our smallest Mefiag Polypropylene Electroplating Filter Systems feature horizontal disc technology and capacities from 600 to 1,600 gph (38 to 100 L per minute).

Since its creation in 1953, Mefiag has gained recognition as a global leader in the development, manufacture, and distribution of superior filter solutions. Our advanced filtration and pump solutions exceed expectations in the metal finishing, plating, and anodizing industries. Our products outshine the competition in the most arduous conditions. When the project is hard, Mefiag filters work harder.

Mefiag manufactures the most versatile products on the market. Along with our electroplating filtration solutions, our products are used in countless industries worldwide to separate and dispose of harmful substances. As our expertise has grown, one thing has never changed: our unwavering dedication to crafting reliable, efficient products for our clients. Choosing a Mefiag filtration system for your business means you are choosing peace of mind.

We are proud of Mefiag’s heritage. From day one, we have been committed to providing outstanding products for outstanding people. If you work for excellence as hard as we do, then you can rely on Mefiag to bring your company the dependability and distinction it deserves. For the optimum filtration solution, choose Mefiag.

Download our brochure
Request info

FEATURES & BENEFITS

  • Designed for the filtration of nickel, copper, and zinc electrolytes
  • Operating temperature to 180°F (82°C)
  • For plating tanks from 200 to 400 gallons (909 to 1818 L) depending on the type of process
  • Can be supplied with horizontal discs or cartridges depending on the application
  • Low Total Cost of Ownership
  • Horizontal disc technology for greater surface area and maximum efficiency
CECO Environmental

APPLICATIONS

  • Automotive
  • Construction
  • Sanitary
  • Plating
  • Anodizing
  • Metal Finishing
  • Labs
  • Small Plating Tanks

Pleated Polypropylene Filter Cartridges

Pleated Polypropylene Filter Cartridges

Mefiag

Our Sethco Pleated Polypropylene Filter Cartridges feature an extended filter surface for greater dirt holding capacity compared to conventional cylinder, sleeve, or wound type depth filter tubes.

Sethco offers the best pumps and filter cartridges for industrial applications. When dealing with corrosive and hazardous chemicals, industry experts count on Sethco products for reliability, safety, and efficiency. Sethco products are the industry standard.

As a global leader, Sethco manufactures products that have a superior reputation. For filtering any number of dangerous liquids, our filter cartridges have the job covered. Our Pleated Polypropylene Filter Cartridges provide greater holding capacity when compared to conventional filter tubes. That is one reason businesses worldwide trust their filter needs to Sethco.

Do not rely on inferior cartridges for cleaning hazardous chemicals or liquids. It is not worth the risk. Go with Sethco reusable cartridges and boost your profits. Our engineering experts are there to help you select the best product for your applications. Let Sethco become a valuable part of your business today.

Download our brochure
Request info

FEATURES & BENEFITS

  • Available in 10″ and 20″ nominal lengths
  • 3- or 30-micron filtration
  • No finishing agent
  • Cartridges fit most single or multi-tiered chambers that use standard 10″ tubes
  • Resistant to acids and alkalis
  • No liquid by-pass
  • Ideal for water clarification
  • Operating temperature to 170°F (77°C).
  • Low Total Cost of Ownership
  • Maximum service life – reusable design
  • Optimal efficiency with greater particle holding capacity

Pickle Line Fume Exhaust

Pickle Line Fume Exhaust

Busch

Modern steel mill pickle lines utilize Hydrochloric Acid to clean the surface of the steel sheet. Acid mist and fumes are generated during this process.

Busch, and our sister firm HEE-Duall, provide complete fume scrubbing systems to capture and neutralize this acid fume. Our systems begin at flanged connections to the pickle line tank covers. A fiberglass duct connects the tank covers to the scrubber and fan, which exhausts to the outdoors by means of an exhaust stack.

The Pickle Line Scrubber is a counter current packed bed scrubber consisting of packed tower complete with flanged horizontal radial gas inlet, glass-filled polypropylene random packing. This allows for excellent mass transfer resulting in high efficiency capture of HCl fume at a minimum pressure drop.

  • The scrubber housing incorporates a vertical or horizontal outlet flange to facilitate installation in limited space.
  • The packing is irrigated by internal piping and liquid distribution system.
  • HCl is scrubbed by using a re-circulation wash water solution from integral self-contained re-circulation tank at the bottom of the scrubber.
  • Blow-down from the re-circulation system serves as make-up water to the pickle line.

We deliver top-performing mist eliminators with optional internal spray piping and spray nozzle to intermittently wash the underside of the mist eliminator, triggered by either high-pressure differential or on a timed sequence.

The cleaned gas from the scrubber is sent to a System ID fan via an interconnecting duct and then to the stack. Click here to download our Steel Brochure.

Note: Acid storage tank vents may also be connected to the system.

Materials of Construction:

  • Scrubber Vessel – FRP or PVC
  • Random Packing – Glass filled Polypropylene
  • Internal Piping and Liquid distribution system – CPVC
Download our brochure
Request info

FEATURES & BENEFITS

Busch Instrumentation, Piping and Pump Features

  • Two (2): Differential Pressure Indicator Gauges for measuring ΔP across Packing and Mist Eliminator
  • One (1): Pressure Indicator Gauge for measuring scrubbing liquid pressure
  • Three (3): flow meters (rotameter type)
  • One (1): set of level control switches for integral re-circulation tank
  • One (1): Automatic wash timer will be included to clean mist eliminators
  • One (1): Control Panel, Ethernet control module, I/O module
  • One (1): Lot Interconnecting piping in PVC (within the battery limit)
  • Two (2): Re-circulation Pumps (1 operating/1 standby) made out of FRP
  • The interconnecting duct between scrubber and Fan: Fabricated with PVR or FRP to run from scrubber outlet to fan inlet.
  • Centrifugal Fan: One (1) ID Fan with heavy-duty TEFC motor
  • Stack and Transition: One (1) FRP stack. The stack is provided with a Stack Skimmer™ to reduce liquid discharge from condensation on the stack wall. A wind support brace is required by others at the roof penetration point if applicable. If not available, Guy wire wind braces can be used.
  • Field Measurement Services (Included): One day on-site including all expenses is included
  • System Arrangement Drawings for Approval (Included)

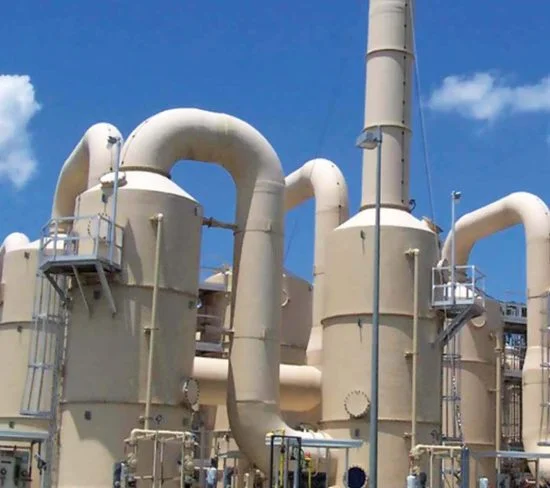

Packed Bed Wet Scrubbers System

Packed Bed Wet Scrubbers System

HEE-Duall

Scrubbers are used for gaseous and particulate control, by means of utilizing water, or other liquid, to remove pollutants from an exhaust stream.

HEE-Duall brand pre-engineered and customized packed bed odor control scrubbers and systems are available to meet customer specific needs. Pre-engineered models include:

  • F Series horizontal “cross-flow” design and PT Series vertical “counter-current” design with capacities to >65,000 CFM
  • FW Series vertical scrubbers with integral fan and capacities to 17,500 CFM

We can design a customized system to meet even the strictest requirements. Major design criteria evaluated include:

  • Size of unit
  • Packings
  • Moisture extractor
  • Scrubbing liquid
  • Recycle rate
  • Material of constructions

HEE-Duall Packed Bed Scrubbers for Municipal and Industrial Odor Control

For almost five decades, the HEE-Duall brand has been recognized as a global leader in the configuration and fabrication of purification products. We create cutting-edge technology for the management of hazardous and volatile exhaust compounds for a wide range of industries. Our versatile line of merchandise includes everything needed for the collection, handling, and control of corrosive gases, mists, airstreams, and vapors. Our wet scrubbers excel at removing particulates that can be harmful to your equipment and surroundings from industrial exhaust streams. When you trust HEE-Duall products, you can be confident that your emissions are clean.

Along with excellent craftsmanship, HEE-Duall’s solutions can be custom-designed to meet your specific requirements, regardless of the size or scope. Our products are flexible and able to handle a wide variety of tasks. Choose from our expansive line to find the right equipment for your application, and we will stand beside you through every step of the process. Our expert team offers a thorough understanding of purification processes, and our customer service sets the standard for the industry. Choosing the right purification equipment for your company is not a simple decision. But when you choose HEE-Duall, the choice is easy. Choose the most advanced, most reliable, and most carefully crafted equipment in the industry.

Download our brochure
Request info

FEATURES & BENEFITS

  • Low Total Cost of Ownership
  • On demand chemical addition minimizes operating costs
  • Offers the greatest design flexibility
  • Economically treats large volumes of process air with infinite turndown ratio, accommodating virtually all choices of chemistry
  • High mass transfer rates achieved in a relatively small equipment footprint
  • High liquid recirculation rates guarantee sufficient chemical is always available to absorb odors
  • Counter-current flow maximizes the driving force for absorption
  • Cross flow (horizontal) scrubbers are available to meet low profile requirements
  • Utilizes non-plugging spray nozzles and packing media
  • No solid waste disposal

Packed Bed Spray Nozzle (Spray Nozzles for Wet Packed Bed Scrubbers)

Packed Bed Spray Nozzle (Spray Nozzles for Wet Packed Bed Scrubbers)

HEE-Duall

Choosing the Best Spray Nozzle

A properly designed Wet Scrubber removes a variety of air contaminants. Wet Packed Bed Scrubbers remove air contaminants and impurities by washing the airstream with a water liquid. Air contaminants are removed by the scrubbing liquid by impaction, reaction with a chemical solution or absorbed into the liquid. Air contaminants and the scrubbing liquid come into contact with other in the packed section of a wet scrubber filled with a high efficiency packing. Spray nozzles will spray small droplets and evenly introduce the scrubbing liquid above the packed bed section, which then flows down through the packing to the bottom of the scrubber sump. A mist eliminator section located above the spray nozzles removes liquid entrained in the cleaned exhaust airstream prior to entering the atmosphere.

Spray nozzles are selected at the lowest possible operating pressure to produce a uniform spray pattern with larger rather than smaller droplets. Any liquid particles that become airborne but do not wet the packing surface defeats the purpose of a scrubber. The function of the spray nozzle is to distribute liquid over the packing, not to test the operation of the mist eliminator. While the mist eliminator will capture the larger airborne droplets, agglomerate them and eventually drain back down to the packing, we do not want 80% of the liquid volume heading to the mist eliminator but instead onto the packing area. Selecting a spray nozzle with a larger particle size without creating a significant amount of smaller droplets than can become airborne and operating at lower operating pressure would be a better choice. In general, spiral spray nozzles should be avoided.

Download our brochure
Request info

FEATURES & BENEFITS

Several common spray nozzle types are candidates for use in a wet packed bed scrubber:

  • Spiral spray also nozzles (TF and TFXP), also called pigtail nozzles producing a round spray pattern
  • Full cone clog resistant nozzles (MP) giving medium to course droplet size
  • Full cone whirl nozzles (SC and NC) with course atomization, available in round and square spray patterns

NOx Control Wet Scrubbers

NOx Control Wet Scrubbers

HEE-Duall

The HEE-Duall brand corrosion-resistant BetaNox® Control Wet Scrubbers provide a unique, high-efficiency wet oxidation/reduction approach to controlling nitrogen oxide (NOx) emissions. Single and multiple stage systems provide more than 99% efficiency on total NOx removal and elimination of the red/brown NOx exhaust plume.

The CECO HEE-Duall brand has been a global leader in the purification product industry for more than four decades. We create breakthrough technology that manages hazardous and volatile exhaust compounds in a wide range of industries. Our extensive selection of merchandise covers every component needed to deal cleansing corrosive airstreams, gases, mists, and vapors from exhaust streams. Our wet scrubbers perform beyond expectations in removing harmful substances from industrial exhaust that can damage both equipment and the environment. When you purify with HEE-Duall, you can be confident that your emissions are effectively and efficiently cleansed.

Along with extraordinary craftsmanship, HEE-Duall also offers custom solutions to meet your specifications, regardless of the project. Our products are built to excel in a variety of applications. Choose from our all-inclusive product line to put together the equipment that is right for you; we will assist you each step of the way. Our expert staff understands every aspect of purification processes, and our customer support team provides superior service. Choosing the right purification equipment for your company can be stressful. But when you choose HEE-Duall, the decision is easy. Choose the most advanced, most reliable, and most carefully crafted equipment in the industry.

Download our brochure
Request info

FEATURES & BENEFITS

  • Professionally engineered stamped equipment designs
  • Low profile, space saving design
  • Low Total Cost of Ownership
  • More than 99% efficient on total NOx removal
  • Safe oxidation / reduction technology
  • Eliminates the red NOx plume
  • Minimal maintenance due to our homogenous thermoplastic construction for complete corrosion resistance

Noise Havens

Noise Havens

In certain circumstances, it is not always feasible to treat the noise at source, particularly in environments where there are multiple noise sources contributing to the overall exposure experienced by operators. In such cases, noise havens can be installed which are designed to offer respite for operators in noisy environments.

Wakefield Acoustics designs, manufactures and installs a wide range of noise havens, and works closely with OEM’s, end users, contractors and consultants to address complex noise problems across a wide range of industries. Each noise haven is cost-effectively designed to meet the most demanding of customer noise specifications.

Wakefield Acoustic offers several types of noise haven construction depending on application and structural requirements, from modular panel to panel constructions through fully framed factory-assembled fabrications for ease of installation on site.

Download our brochure
Request info

FEATURES & BENEFITS

  • Single and double leaf, hinged and sliding doors for personnel access
  • Glazed viewing panels
  • Fan-assisted ventilation systems
  • Natural, free-flow, ventilation systems
  • Stand-alone air conditioning units
  • Internal lighting
  • VARIOUS FINISHES INCLUDING:
    • Polyester powder coated
    • Wet paint systems
    • Plastic coated steel

NOISE HAVENS FAQS

When it’s not practical to enclose noisy machinery or other noise sources, the next option is to create a respite space for the staff in noisy environments. These are called acoustic noise havens.
