Brand: Compass Water Solutions

ULTRA-SEP™ Standard Oily Water Separator

ULTRA-SEP™ Standard Oily Water Separator

ULTRA-SEP™ is a two-stage system. The first stage efficiently removes free oil using our HELI-SEP® coalescing matrix separator, which is familiar to ship operators worldwide, with more than 20,000 in service around the world. The second stage SPIR-O-LATOR® technology provides a positive physical barrier to break emulsions and provide continuous less than 5ppm discharge. In fact, oil cannot penetrate the SPIR-O-LATOR®, so no oil will ever spill.*

*Using SPIR-O-LATOR® Correctly with proper set-up and maintenance.

Download our brochure
Request info

FEATURES & BENEFITS

  • Provides a positive physical barrier that minimizes the risk of accidental overboard discharge
  • Consistently produces clean water with less than 5ppm oil content GUARANTEED
  • Does not require chemicals, coalescing filters, clay or carbon fi lters replacements
  • Does not use hazardous chemicals
  • Does not produce biological waste by-product
  • Requires minimal operator involvement, saving time and labor cost
  • Easy to operate
  • Easy and economical to install
  • Available on single skid for new builds or modular Skids for Retrofits
  • All units are pre-wired, pre-piped and fully tested
  • IMO MEPC.107(49) Type Approval by USCG, ABS and RMRS
  • EC-MED Type Approval

ULTRA-SEP ® Compact Oily Water Separator G Series

ULTRA-SEP ® Compact Oily Water Separator G Series

ULTRA-SEP G Series Bilge Water Separators meet your need for a small unit with a lower capital cost. Ideal for engine rooms where your installation space and budget are tight. G Series provide the same Positive Physical Barrier and continuous less than 5ppm discharge as Compass Water Solutions larger ULTRA-SEP systems but in a more compact size.

Download our brochure
Request info

FEATURES & BENEFITS

  • Superior separation of emulsions with SPIR-O-LATOR® Membrane Technology.
  • The Positive Physical Barrier to oil reduces risk of accidental overboard discharge.
  • Continuous discharge with less than 5ppm oil content.
  • Small footprint allows easy retrofit installation.
  • Manual controls are simple and easy to operate.
  • All units are pre-wired and pre-piped to facilitate easy installation and operation.
  • IMO MEPC.107(49) / EC-MED type approved by USCG and ABS
  • Updated design with improved pre-filter, simplifi ed hydraulic flow, easy to read gauges, motorized ball valves, electric fail-close overboard discharge valve and updated controls.

ULTRA-SEP ® Compact Oily Water Separator C Series

ULTRA-SEP ® Compact Oily Water Separator C Series

ULTRA-SEP C Series Bilge Water Separators meet your need for a small unit with a lower capital cost. Ideal for engine rooms where your installation space and budget are tight. C Series provide the same Positive Physical Barrier and continuous less than 5ppm discharge as Compass Water Solutions larger ULTRA-SEP systems but in a more compact size.

Download our brochure
Request info

FEATURES & BENEFITS

  • Superior separation of emulsions with SPIR-O-LATOR® Membrane Technology. The Positive Physical Barrier to oil reduces risk of accidental overboard discharge.
  • Continuous discharge with less than 5ppm oil content.
  • Small footprint allows easy retrofit installation.
  • Manual controls are simple and easy to operate.
  • All units are pre-wired and pre-piped to facilitate easy installation and operation.
  • IMO MEPC.107(49) / EC-MED type approved by USCG and ABS
  • Updated design with improved pre-filter, simplified hydraulic flow, easy-to-read gauges and updated controls.

SAREX ® VG-SEP™

SAREX ® VG-SEP™

VG-SEP 200 Series Bilge Water Separator meets your need for a small unit with a lower capital cost. Ideal for engine rooms where your installation space and budget are tight especially on Yachts, Tugs and Towboats. The VG-SEP 200 uses coalescer first stage technology coupled with high tech replaceable filter elements to meet strict IMO MEPC.107(49) requirements for removal of emulsified hydrocarbons from bilge water to less than 15ppm.

Download our brochure
Request info

FEATURES & BENEFITS

  • Superior separation of emulsions in a compact design
  • Small footprint allows easy retrofit installation
  • Manual controls are simple and easy to operate
  • All units are pre-wired and pre-piped to facilitate easy installation and operation
  • IMO MEPC.107(49) type approved by USCG
  • Updated design with easily replaceable filter elements for ease of maintenance

RECYCLO-SEP®

RECYCLO-SEP®

Take the “Waste” Out of Waste Water With a RECYCLO-SEP® Recycler.

The RECYCLO-SEP® is a fully automatic wastewater recycling unit that processes dirty water created by cleaning equipment into water clean enough to be reused. The process flow rates are 6 GPM for the RECYCLO-SEP®.

Model 2000 and 12 GPM for the RECYCLO-SEP Model 2800.

The RECYCLO-SEP® has been proven especially effective in removing oils, grease, heavy metals, solids and other contaminants from water used in conjunction with pressure washers, steam cleaners or similar equipment. The system maintains a proper pH balance so that the recycled water may be safely reused. The RECYCLO-SEP® separator eliminates pollution problems by taking the waste out of waste water through recycling and reuse. The waste residue is reduced to a small, easily disposable semi-dry cake.

The principal system components consist of four vertically skid mounted tanks equipped with a feed pump, process pump, cartridge filter, three metering pumps, and associated valves and controls. The four processing tanks include the first stage tank, the flocculate tank, in which the majority of oil and solids are removed from the wastewater influent. The second stage, the separator tank, continued separation of remaining residual oils and solids. The third stage, the surge tank, provides a supply of clarified water for operation of the process pump. The fourth stage, the storage tank, stores the clean, processed water ready to be reused.

Request info

FEATURES & BENEFITS

  • Provides easy and cost effective environmental regulations compliance
  • Prevents pollution from waste water discharge by converting existing open-loop operations into environmentally safe closed-loop systems
  • A simple, economical and reliable process for producing clean reusable water
  • Eliminates the need and cost of discharging waste water into a sewer and avoids the expense of transporting large volumes of liquid waste to a hazardous dump site
  • Saves water and reduces monthly water fees
  • Proven performance with state-of-the-art technology
  • Skid mounted for easy installation and operation
  • Enhances water conservation

INDUSTRO-SEP

INDUSTRO-SEP

The INDUSTRO-SEP Combines Advanced Technology with Proven Concepts in Efficient Oil Water Separation Techniques

The INDUSTRO-SEP is an engineered industrial liquid wastewater separator, which utilizes state of the art membrane technology to provide the most effective treatment of process wastewaters involving oily emulsions, elevated BOD or CODs, solids, and other contaminants. The flexibility of the design allows for the use of a wide range of membranes and system components to satisfy most applications.

INDUSTRO-SEP systems are available in one and two stage configurations. INDUSTRO-SEP applications include parts washing solution treatment and recovery, textile dye removal, machine tool coolant treatment, plating solution and rinse water recovery and many other liquid-to-liquid separation applications. INDUSTRO-SEP is designed to provide high rejection and separation rates to optimize waste concentration or maximum recovery of process liquids.

Request info

FEATURES & BENEFITS

  • Modular system design allows for maximum customization of process to satisfy wide range of application requirements
  • Units are pre-piped and pre-wired to simplify installation and reduce related costs
  • PLC control provides excellent automatic system operation, maximizing performance
  • Integral membrane maintenance systems extend membrane service life
  • Heavy-duty industrial components offer enhanced durability and reliability
  • Advanced materials of construction handle both acidic and alkaline solutions
  • Compact design has small footprint minimizing floor space required
  • Chemical free treatment process reducing operating cost

CRP-SEP ® Slop Water Separator

CRP-SEP ® Slop Water Separator

CRP-SEP Series Oily Water Separators are a progressive single-stage, horizontal separator designed to efficiently remove nonsoluble oils, solids and entrained air from PRODUCED WATER and SLOP WATER with capacities up to 100 m3/h (440 GPM). CRP-SEP delivers effluent with less than 15 ppm of oil. When environmental regulations require less than 5 ppm discharge, SPIR-O-LATOR® Membranes can be added as a second phase to guarantee less than 5 ppm of oil.

Download our brochure
Request info

FEATURES & BENEFITS

  • Rugged construction provides years of service
  • Single heavy duty horizontal process vessel
  • NEMA 4X ratings for installation in hazardous areas
  • Integral low shear positive displacement feed pump
  • Continuous discharge with less than 15ppm oil content
  • Optional Fluoroescence Oil Content Monitors
  • Integrated Control and Safety System

CLARI-SEP®

CLARI-SEP®

Wash Water Separator is capable of treating waste water generated from the cleaning of machinery and equipment, separating free oil and dirt from the water making it suitable for sewer discharge.* The process used include aeration, gravity separation, solids separation, oil coalescing, ozone disinfection and oxidation.

The CLARI-SEP® is designed for installation in either indoor or outdoor locations and is supplied with drain lines and valves to prevent freeze damage. An optional immersion heater is also available for installation in the separator tank. The pumps are designed and sized for optimum operating conditions to provide water suitable for sanitary discharge from a typical pressure-washer wash bay.

The CLARI-SEP® is capable of processing up to 15 gallons per minute of wash water through the separation, filtration and disinfection components. The CLARI-SEP® removes free oil and hydro-carbons (one micron and larger in size), dirt, sand and grit (down to 50 microns in size) and provides constant recirculation with ozonation for bacteria control.

* NOTE: “suitable for sewer discharge” is defined as the allowable discharge limits in your local area.

Request info

FEATURES & BENEFITS

  • Unitized skid design is compact and simplifies installation
  • Unit is pre-wired, pre-piped to minimize installation time and costs
  • Corrosion resistant construction throughout reduces maintenance and extends system service life
  • Permanent coalescing matrix eliminates the need for and disposal associated with replaceable filters
  • Heavy-duty industrial components offer enhanced durability reducing maintenance costs
  • Open design allows for easy access for routine maintenance and periodic inspection
  • Lockable control panel is protected by weather resistant case and minimizes unauthorized access

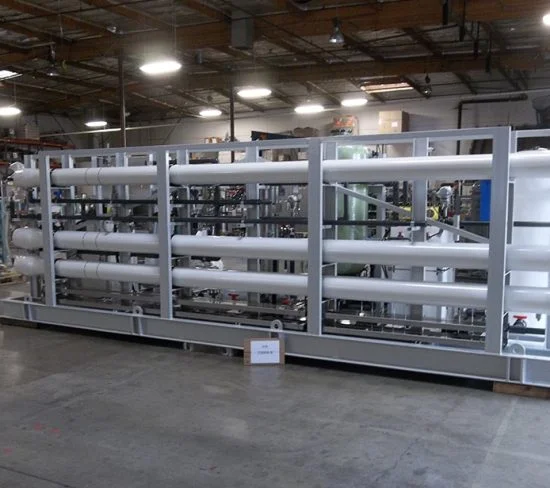

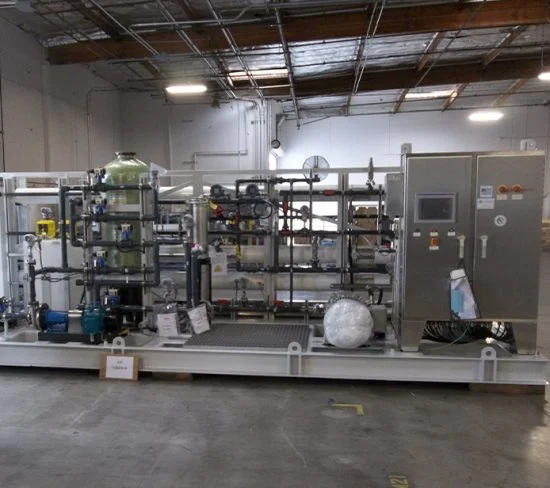

AQUA-SEP ® Series IV ™ Reverse Osmosis Fresh Water Makers

AQUA-SEP ® Series IV ™ Reverse Osmosis Fresh Water Makers

Custom designed to meet the Customers’ needs and specifications. Available in skid or modular design. Designed to operate virtually hands free with simple manual or automatic operation. Available in Freshwater (>500 PPM) or Technical Water (greater than 10 ppm). Ergonomic designed provides easy access to all components. Available in sizes to Customer’s specifications.

Download our brochure
Request info

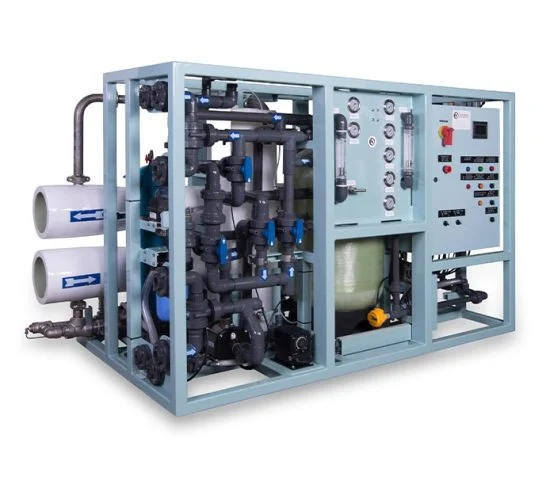

AQUA-SEP ® Series III ™ Reverse Osmosis Fresh Water Makers

AQUA-SEP ® Series III ™ Reverse Osmosis Fresh Water Makers

Convenience, Performance and Ease of Maintenance in Standard Configurations.

Standard systems range from 25 m3 d (6,600 GPD) to 100 m3 d (26,400 GPD) and handle a wide range of salinity (36,000 TDS to 45,000 TDS), with temperature ranges (0oC / 32oC to 35oC / 95oC). The closed-loop control system is built with NEMA 4X integrity and can be operated in fully automatic or manual modes from the same standard controller. Standard single skids and modular confi gurations are available.

Download our brochure
Request info

FEATURES & BENEFITS

  • Carbon Steel, Marine-grade Powder Coated Frame
  • Low Consumables – Single 5 micro filter
  • Integrated Optional Chemical Feed System
  • Full color touch screen
  • PLC controls and gauge panel at eye level
  • Controls for manual operation at front of unit
  • Easy installation, startup and commissioning • All hookups on one side of the unit
  • Improved design for service and maintenance
  • Easy access to vertically mounted high-pressure pumps
  • Ready access to all instruments and filters
  • Skidded and modular configurations
  • Pre-engineered for all options Standard Features: Booster pump, High Pressure Pump, Automatic Product Water Diversion Valve, Fresh Water Flush Valve, General Alarm Contact, Low Pressure Sensor, High Pressure Sensor
